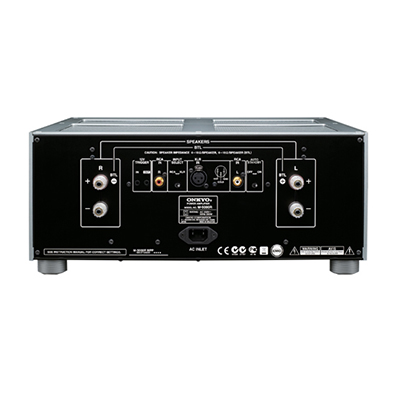

Onkyo M-5000R Amplifier

R61,990.00 R49,592.00

Description

Key Features:
– AWRAT (Advanced Wide Range Amplifier Technology)
– Quad Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry
– BTL (Bridged Transless) Capability
– Audiophile-Quality Parts
– New Circuit Board Construction

Music, when you hear it in all its glory, has the power to lift the spirits and transport you into another realm.
Driving you there in audiophile style is Onkyo’s newest hi-fi power amplifier, the M-5000R.
Signal quality on the M-5000R is meticulously preserved by new AWRAT technology, while three-stage inverted Darlington circuitry provides extremely efficient power output.
Massive twin toroidal transformers and four 27,000 F capacitors work to stabilize the power supply and current, respectively.
And to minimize errors in stereophonic playback, the amplifier incorporates a totally symmetrical alignment of power devices for left and right channels.

Specifications:
– Power Output (2-ch stereo)
– 150 W/Ch (4 Omega, 20 Hz-20 kHz, 0.05%, 2 channels driven, IEC)
– 80 W/Ch (8 Omega, 20 Hz-20 kHz, 0.05%, 2 channels driven, IEC)
– 170 W/Ch (4 Omega, 1 kHz, 1%, 2 channels driven, IEC)
– 100 W/Ch (8 Omega, 1 kHz, 1%, 2 channels driven, IEC)
– Power Output: (BTL mono)
– 220 W/Ch (4 Omega, 20 Hz?20 kHz, 0.05%, 1 channel driven, IEC)
– 180 W/Ch (8 Omega, 20 Hz?20 kHz, 0.05%, 1 channel driven, IEC)
– 250 W/Ch (4 Omega, 1 kHz, 1%, 1 channel driven, IEC)
– 200 W/Ch (8 Omega, 1 kHz, 1%, 1 channel driven, IEC)
– Dynamic Power 460 W (1 Omega), 320 W (2 Omega), 245 W (3 Omega),
– 196 W (4 Omega), 142 W (6 Omega), 110 W (8 Omega)
– THD+N (Total Harmonic Distortion + Noise) 0.005% (1 kHz, Half power)
– 0.02% (20 Hz?20 kHz, Half power)
– Damping Factor 130 (1 kHz, 8 Omega)
– Input Sensitivity and Impedance 1.4 V/10 k? (BTL)
– 700 mV/10 k? (RCA)
– Frequency Response 10 Hz-100 kHz/0 dB, -1 dB (1 W)
– 1 Hz?250 kHz/-3 dB (1 W/8 Omega)
– Signal-to-Noise Ratio 110 dB (RCA, IHF-A)
– Speaker Impedance RCA stereo: 4 Omega-16 Omega
– XLR mono: 6 Omega-16 Omega (BTL)

General
– Power Supply AC 230 V~, 50 Hz
– Power Consumption 280 W
– Dimensions (W x H x D): 435mm x 187.5mm x 432.5 mm
– Weight 23.5 kg

CARTON
– Dimensions (W x H x D): 627mm x 332mm x 546mm
– Weight: 27.0 kg
